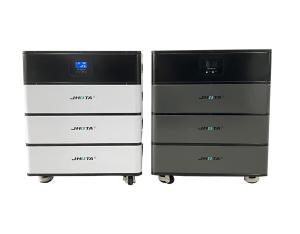

| Model | 15KW Stacked Energy Storage System (5KWH battery + 5KW inverter) |
| BATTERY |
| Battery Type | LifePo4 |
| Battery Energy | 15.36KWh |
| Battery Capacity | 100Ah (Min 97Ah) x 3 |
| 5KWH Energy Storage System Net Weight | 181 KG |
| 5KWH Energy Storage System Net Dimension | 650*460*765 mm |
| Battery Rated Voltage | 51.2V (16S) |
| Overcharge Protection Voltage | 58.4V |
| Overdischarge protection voltage | 40V |
| Maximum Charging Current | 80A |
| Maximum Discharging Current | 100A |
| Packing Part I Weight: Inverter + Base | 37 KG |
| Packing Part Il Weight: Battery | 53 KG |
| Total Packing Part Weight: 1 inverter + 1 base + 3 battery | 196 KG |
| Packing Part I Dimension: Inverter + Base | 735*550*590 mm |
| Packing Part Il Dimension: Battery | 745*550*320 mm |
| Total Packing Part Dimension: 1 inverter + 1 base + 3 battery | 74.5*55*155 cm |
| DOD | 80% |
| Designed Life-span | 6000 |
| Four Charging Modes are Optional | Solar only, Mains priority, Solar priority, Hybrid charging |
| Three Output Modes | 1.Mains priority mode:
Power supply sequence: Mains power - Photovoltaic - Battery.
2.Inverter priority mode:
Power supply sequence: Photovoltaic - Battery - Mains.
3.Photovoltaic priority mode:
Power supply sequence: Photovoltaic - Mains - Battery. |
| PV CHARGE |
| Maximum PV Open-circuit Voltage | 500vdc |
| PV Working Voltage Range | 120-500Vdc |
| MPPT Voltage Range | 120-450Vdc (Suggest: 300 - 400Vdc) |
| Maximum PV Input current | 18A |
| Maximum PV Input Power | 5200W (Suggest: 1500 - 2000W) |
| Maximum PV Charing Current | 80A |
| MAINS CHARGING |
| Rated Input Voltage | 220/230Vac(√) 110/120Vac( ) |
| Input Voltage Range | UPS Mains Mode: (170Vac - 280Vac) ± 2%
APL Generator Mode: (90Vac - 280Vac) ± 2% |
| Mains Maximum Charging Current | 60A |
| Mains Charging Efficiency | >95% |
| INVERTER |
| Output Waveform | Pure Sine Wave |
| Rated Output Voltage | 230Vac (200 / 208 / 220 / 240Vac) (√)
120Vac (100 / 105 / 110Vac) ( ) |
| Rated Output Power | 5000W |
| Maximum Peak Power | 10000VA |
| Frequency | 60Hz |
| Over Temperature Protection | 60°C-70°C |
| Number of Parallel / Split Phases | 1-6 pieces |
| On-load Motor capacity | 4HP |
| Maximum Efficiency | >90% |
| No load loss | Non Energy-saving Mode: <50W
Energy-saving Mode: <25W (Manual Setup) |
| GENERAL DATA |
| Certificate | CE, UN38.3, MSDS, IEC 62619, Sea report |
| Storage time / Temperature | 6 months @25°C;
3 months @35°C;
1 months @45°C; |
| Charging Temperature Range | -10~55°C |
| Discharging Temperature Range | -10~55°C |
| Operation Humidity | 5%~95°C |
| Noise | 60dB (A) |
| Recommended Operation Environment | Indoor |
| Installation Method | Horizontal |
